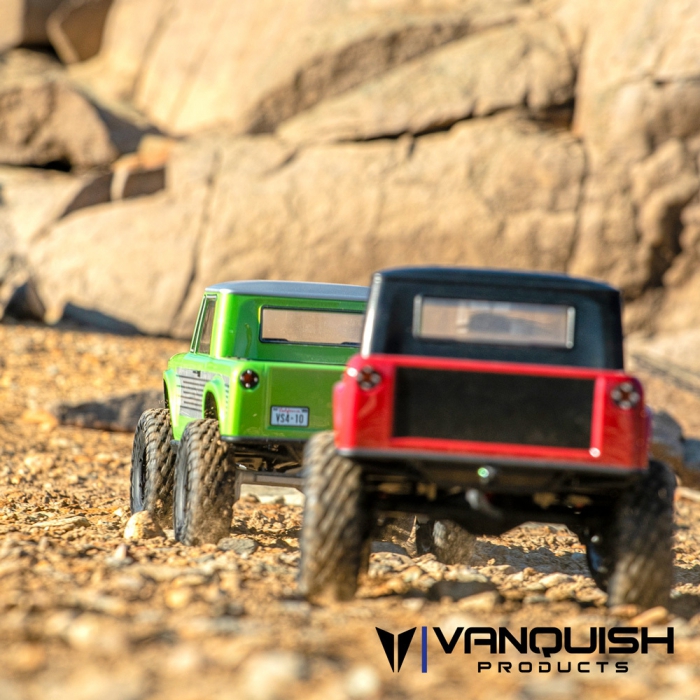

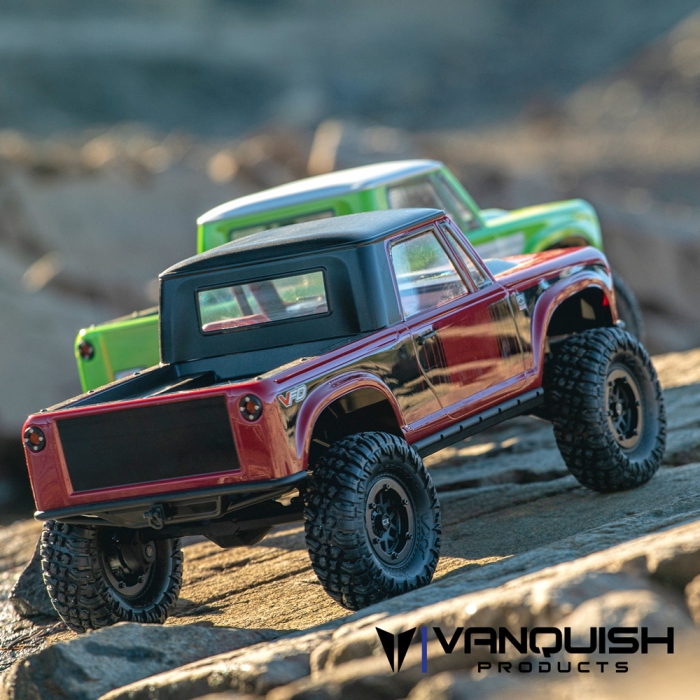

Vanquish VS4-10 Ultra Black Anodized - Origin Halfcab

Click để xem lớn hơn


Model: VPS09006

Price: 21,500,000đ





The VS4-10 Ultra drivetrain utilizes the VFD Spec transmission and our proven portal axle design you already know and trust. The licensed Currie Enterprises Portal F9 style front axle features an offset front differential housing and uses chromoly VVD axle shafts, chromoly portal box gears, 6mm output shafts, high-pinion hypoid ring gear, chromoly 6 bolt spool and patent pending one-piece bearing retainers to create an incredibly scale and durable front axle assembly. Integrated inner c-hubs create an unmatched scale look and are strengthened to provide the most durable axle housing possible, with easily replaceable chromoly threaded inserts for the knuckle kingpin screws. The rear Currie Portal F9 style axle features a centered differential housing and equal length chromoly axle shafts, with the same gears and spool found in the front axle.

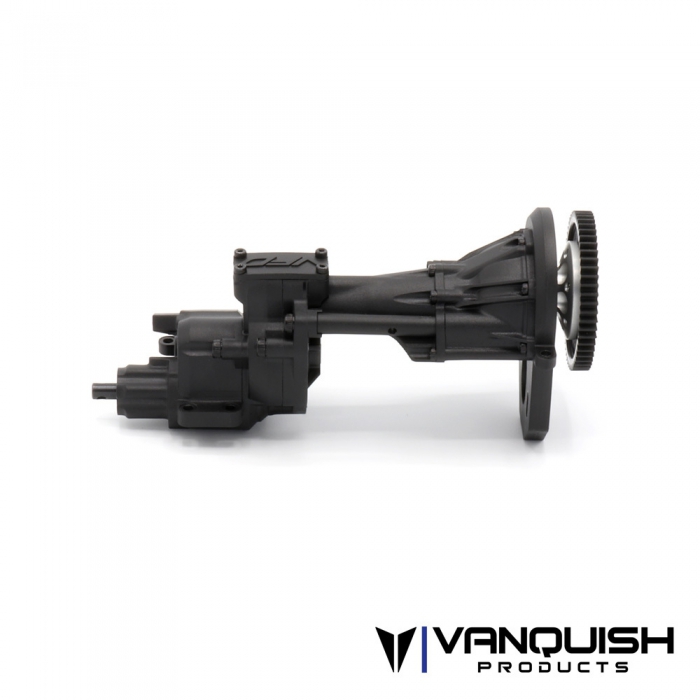

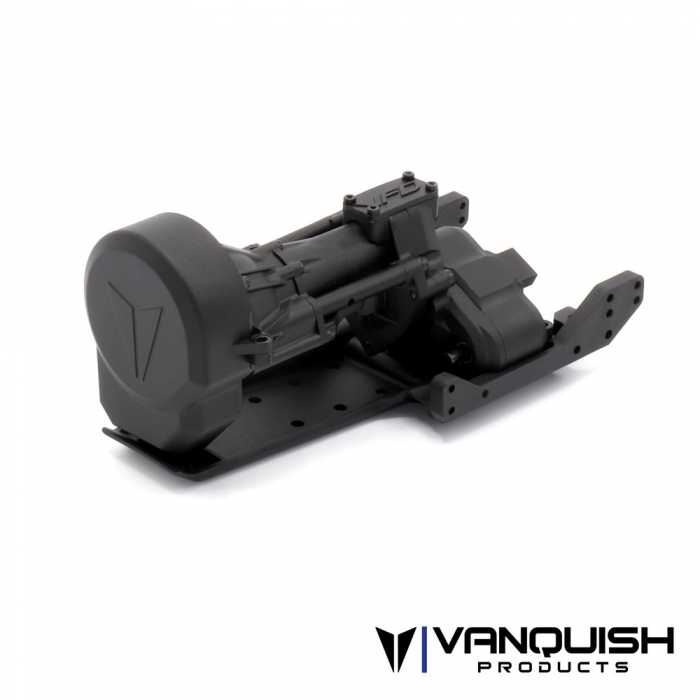

  • VFD Spec Transmission
  • Currie Enterprise Portal Axle Housings
  • Portal Offset Front Pumpkin
  • Portal Centered Rear Pumpkin
  • High-Pinion Hypoid Axle Gears
  • 6-Bolt Ring Gear and Spool
  • Chromoly Portal Overdrive Gears F/R*
  • Chromoly VVD front axles
  • 6mm Output shafts with M5 hex nut
  • Integrated Inner C's
  • Chromoly Threaded Inserts
  • One-Piece Bearing Retainers (patent pending)
  • Aluminum Portal Knuckles with Scale High Steer Arm
  • Chromoly Rear Axle Shafts
  • Scale F9 3rd Members

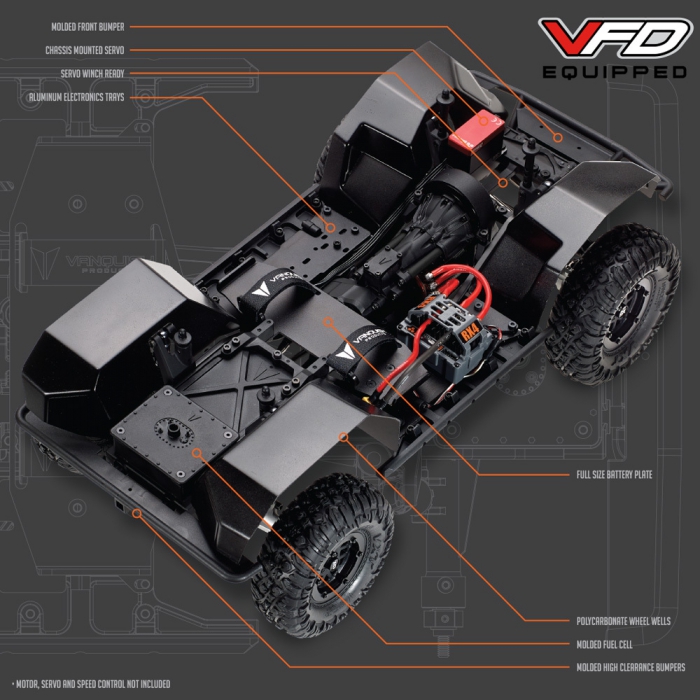

  • Double Shear Shock Mounts
  • Aluminum 12mm Hexes for 6mm output shafts
  • Incision Steel Driveshafts
  • Full Ball Bearing

SPECIFICATIONS
  • 12.3" Wheelbase
  • 9.65" (245mm) Overall Width
  • 19.3" (490mm) Overall Length
  • 9.8" (250mm) Overall Height
  • 5.25:1 Overall Axle Ratio
  • 1.4:1 Portal Box Ratio (VPS08353 20/28 Overdrive Portal Gear Set Front and Rear)*
  • Internal Trans Ratio: Front 2.95 / Rear 3.15
  • Overall Gear Ratio: Front 57.8 / Rear 61.7
  • Overdrive Percentage: 6.5%
  • 15T 32P Pinion for 3mm motor shaft Included
  • 56T 32P Spur Gear Included
